High Efficiency Silicon Wafer
High Efficiency M10R Wafer (182.2mm x 183.75mm)
| Cross-Section Size | M10R (182.2 mm × 183.75 mm) |
| Oxygen Concentration | ≤ 7.0×1017 at/cm3 (≤ 14 ppma) |
| Carbon Concentration | ≤ 2.5×1016 at/cm3 (≤ 0.5 ppma) |
| Resistivity | 0.3–1.6 Ω·cm |
| Carrier Lifetime (Minority Carrier Lifetime) | ≥ 800 µs |
| Dimensions | 182.2 ± 0.25 mm, 183.75 ± 0.25 mm |
| Thickness | 130 µm ± 8μm |

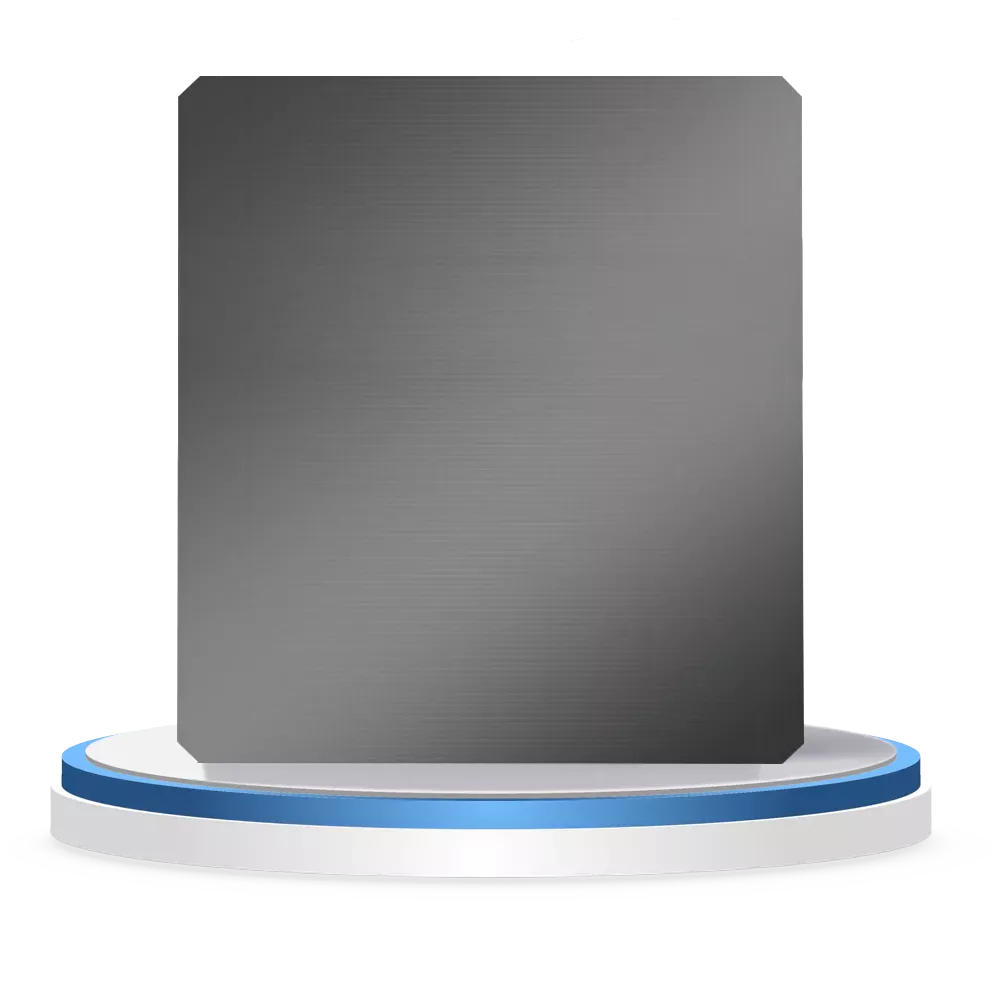

High Efficiency G12R Wafer (182.3mm x 210mm)
| Cross-Section Size | G12R (182.3 mm x 210 mm) |
| Oxygen Concentration | ≤ 11 ppma |
| Carbon Concentration | ≤ 1 ppma |
| Resistivity | 0.3–1.6 Ω·cm |
| Carrier Lifetime (Minority Carrier Lifetime) | ≥ 1000 µs |
| Dimensions | 182.3 ± 0.25 mm, 210 ± 0.25 mm |
| Thickness | 130 µm ± 8μm |
